Product Details

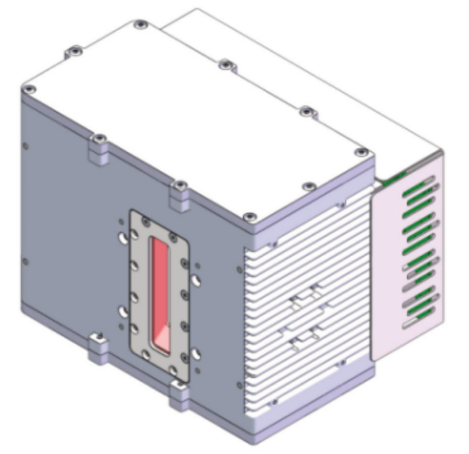

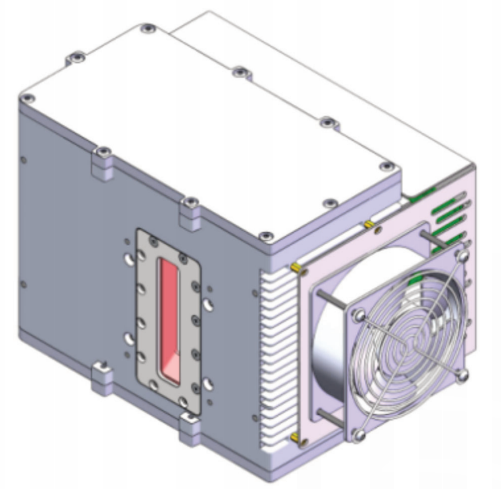

The HVC802B0 X-Ray Source is an exceptionally compact, portable, and reliable line of high voltage X-ray generators. Using in allowable operating ambient temperature, it is capable to self-heat dissipate up to 100W continuous with no additional cooling. The X-ray generator integrates the high voltage inverter, filament supply, X-ray tube and X-ray housing into one unit. The High Voltage X-ray Unit is an 80kV/100W, High Frequency, self-cooled, self-protected & self-contained X-ray generator. It consists of an X-ray tank, and a control box. The Generator is controlled, programmed and monitored via a standard RS232 interface.
Application:
Food testing, industrial non-destructive testing, dangerous goods testing and other fields, mostly used for simple X-ray machines or mobile X-ray testing equipment
Specification:
Item | Specification |
Input voltage | 230VAC±10%, 50/60Hz, 1.2Amps |
Output power of X ray tube | Max continuous output power 100W（80kV/1.25mA,50kv/2mA） |
Output voltage | Rated output voltage：Continuously adjustable voltage range 20kV—80kV |
Output voltage ripple：±0.5%（peak to peak） |
Output voltage accuracy：±2% of voltage setting value |
line regulation：±0.1% |
load regulation：±0.1% |
Tube current | Rated tube current：Continuously adjustable current range 0.5mA-2mA |
Tube current accuracy：±1% mA of current setting value |
line regulation：±0.5% |
load regulation：±0.5% |
Rise time of output voltage | At maximum power, the output voltage rise time is less than 0.6 second |
When the output voltage is below 40kV, the rise time is less than 0.1 seconds. |
Filament power supply: | input voltage：24VDC |
filament voltage：1 to 4ac |
filament：1.0 to 4.5 Amps RMS |
preheating time：3sec |
Tube feature | Tube type： fixed anode, glass window, tungsten target |
focus：0.5mm |
inherent filtration：0.8mm Be，0.7mm AI |
radiation angle：80°*16° fan beam |
target angle：20° |
Cooling | transformer oil，natural air cooling |
Working temperatures | -10℃—40℃ |
Storing temperature | -20℃—60℃ |
System temperature protection | 60°C ± 3°C of Oil temperature: |
Humidness | 98%，Non-condensation |
Weight | 15kg |
Installation direction | Installation in any direction |
Radiation angle | 16°×80° |

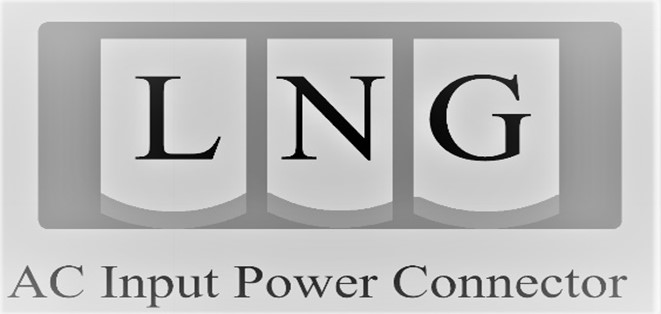

JB1/AC~(AC Input Power Connector)
Pin | Signal | Parameter |
1 | L | live wire |
2 | N | Neutral line |
3 | G | PE |

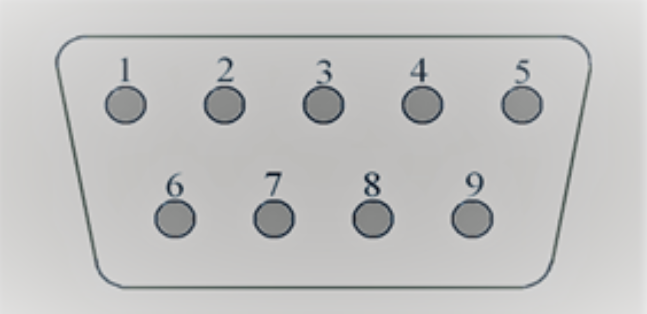

JB2/COM (DMR-9S interface definitions)
Pin | Signal | Parameter |
1.4.6.7.8.9 | N/C | No connect |
2 | TXD | Data transmit |
3 | RXD | Data receive |
5 | GND | Signal gnd |

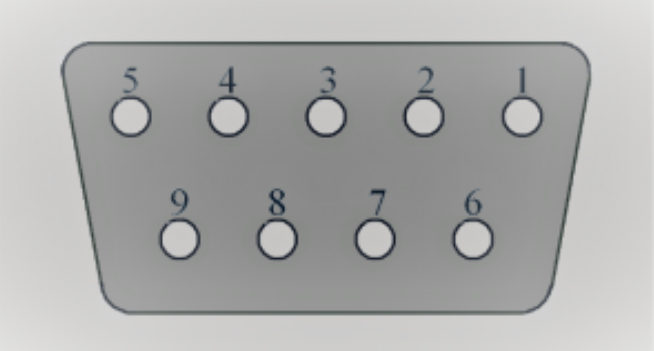

JB3/Interlock,(DMR-9P interface definitions)
Pin | Signal | Parameter |
3/4/5/6/7/8/9 | N/C | No connect |
1 | Interlock Out |
|
2 | Interlock In |
|
Short connect pin1 and pin2 make X ray source normal operation. Typical connection：

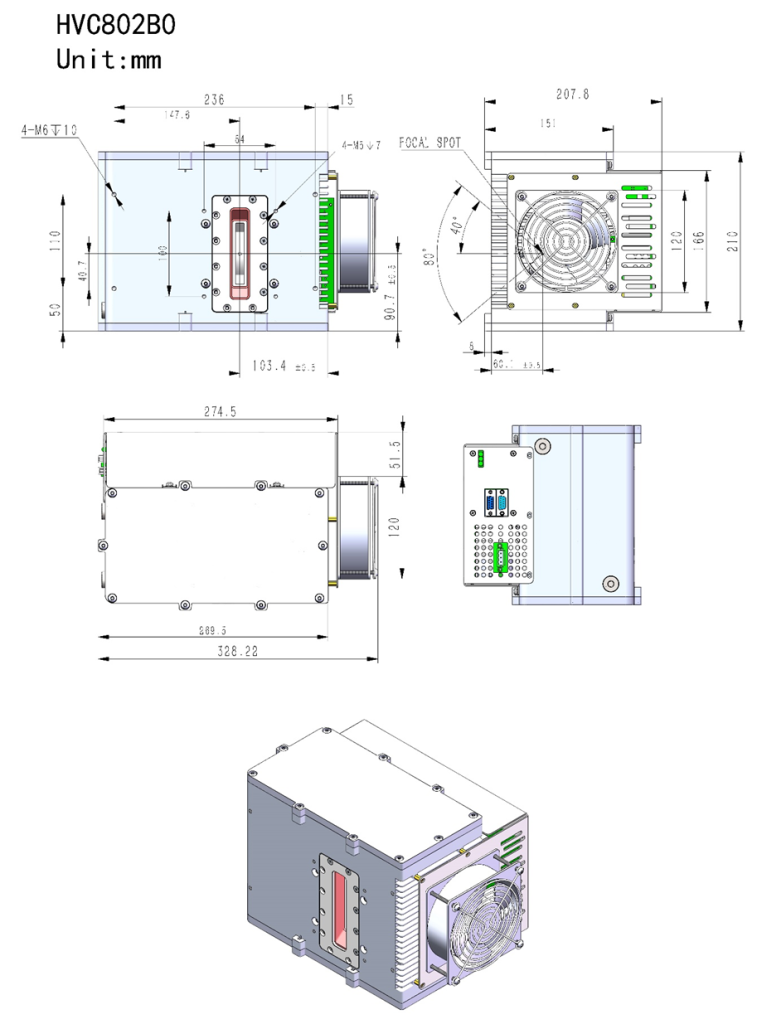

Tank size
