Product Details

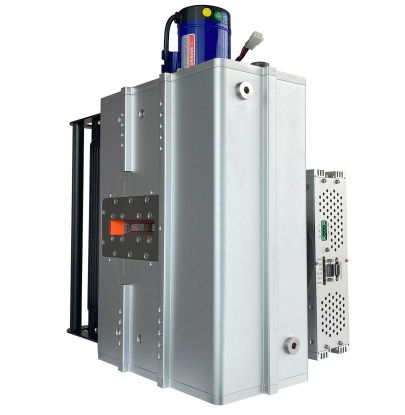

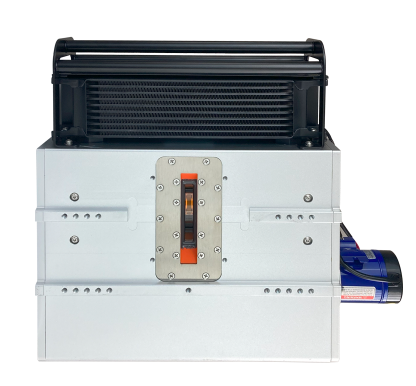

The HVC1206A0 series X-ray source is a compact, safe, low-leakage, and electrically stable high-voltage X-ray generator. It can operate continuously at 400W within the allowable temperature range. The X-ray source consists of a high-voltage power supply, filament power supply, X-ray tube, X-ray oil tank, and radiator. This high-frequency, self-cooling, and self-protecting X-ray generator delivers up to 120kV and 400W. It primarily includes a control box and X-ray oil tank, with RS232 interface for system control, monitoring, and firmware upgrades.
Application:
Food testing, industrial non-destructive, security application and other fields, mostly used for X-ray machines.
Specification:
Item | Specification |
Input voltage | 230VAC±10%, 50/60Hz, 3Amps |
Output power of X ray tube | Max continuous output power 400W（120kV/3.3mA or 67kV/6mA） |
Output voltage | Rated output voltage：Continuously adjustable voltage range 30kV—120kV |
Output voltage ripple：±0.5%（peak to peak） |
Output voltage accuracy：±2% of voltage setting value |
line regulation：±0.1% |
load regulation：±0.1% |
Tube current | Rated tube current：Continuously adjustable current range 0.5mA-6.0mA |
Tube current accuracy：±0.2mA of current setting value |
line regulation：±0.1% |
load regulation：±0.1% |
Rise time of output voltage | The kV rise time is <0.6 Sec at maximum power |
The kV rise time is <0.1 Sec at low voltage ( < 40kV ) |
Filament power supply: | input voltage：24VDC |
filament voltage：2.0 to 5.3Vac |
filament：3.0 to 3.8 Amps RMS |
preheating time：3sec |
Tube feature | Tube type：fixed anode、glass envelope、tungsten target |
focus：0.8mm |
inherent filtration：0.8mm Be，0.7mm AI |
radiation angle：80º*16ºfan beam |
target angle：25° |
Cooling | transformer oil，external circulation，external forced air cooling |
Working temperatures | -10℃—40℃ |
Storing temperature | -20℃—60℃ |
System temperature protection | 60℃ ±3 ℃ of oil temperature |
Humidness | 98%，Non-condensation |
Weight | Oil tank：27.3kg |
Control Unit：3.8kg |
Installation direction | Installation in any direction |
Radiation angle | 16°×80° |
X-ray leakage | less than 0.5mR/hr at 5cm from the surface of the HVC1206A0 |

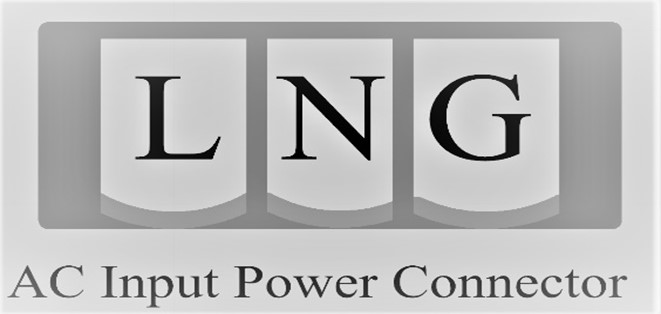

JB1/AC~(AC Input Power Connector)
Pin | Signal | Parameter |
1 | L | live wire |
2 | N | Neutral line |
3 | G | PE |

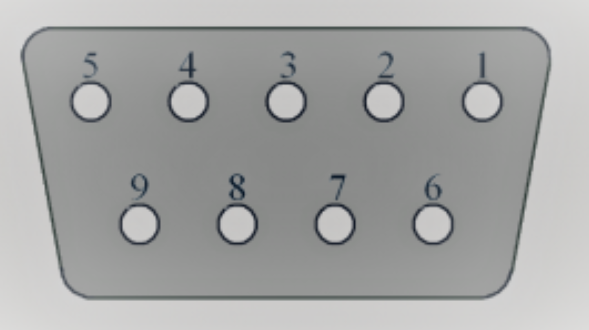

JB2/COM (DMR-9S interface definitions)
Pin | Signal | Parameter |
1.4.6.7.8.9 | N/C | No connect |
2 | TXD | Data transmit |
3 | RXD | Data receive |
5 | GND | Signal gnd |

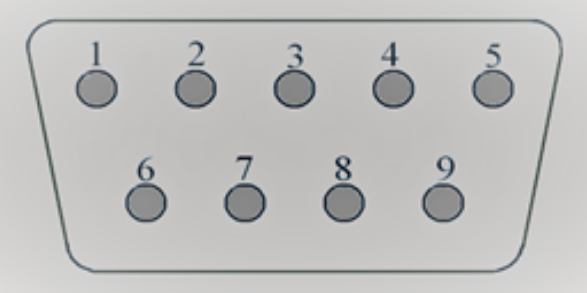

JB3/Interlock,(DMR-9P interface definitions)
Pin | Signal | Parameter |
3/4/5/6/7/8/9 | N/C | No connect |
1 | Interlock Out |
|
2 | Interlock In |
|

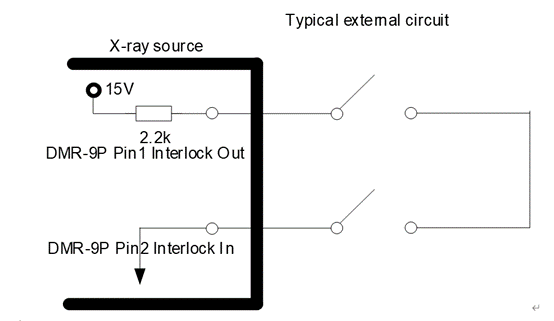

Short connect pin1 and pin2 make X ray source normal operation. Typical connection：
Led indicator:
ID | Color | Meaning |
XrayOn | Yellow | indicate X ray on |
ARC | Red | Arcing in oil tank |
OT | Red | Over temperature |
EP_Err | Red | Tube voltage error |
IP_Err | Red | Tube current error |
Power | Green | Power on |

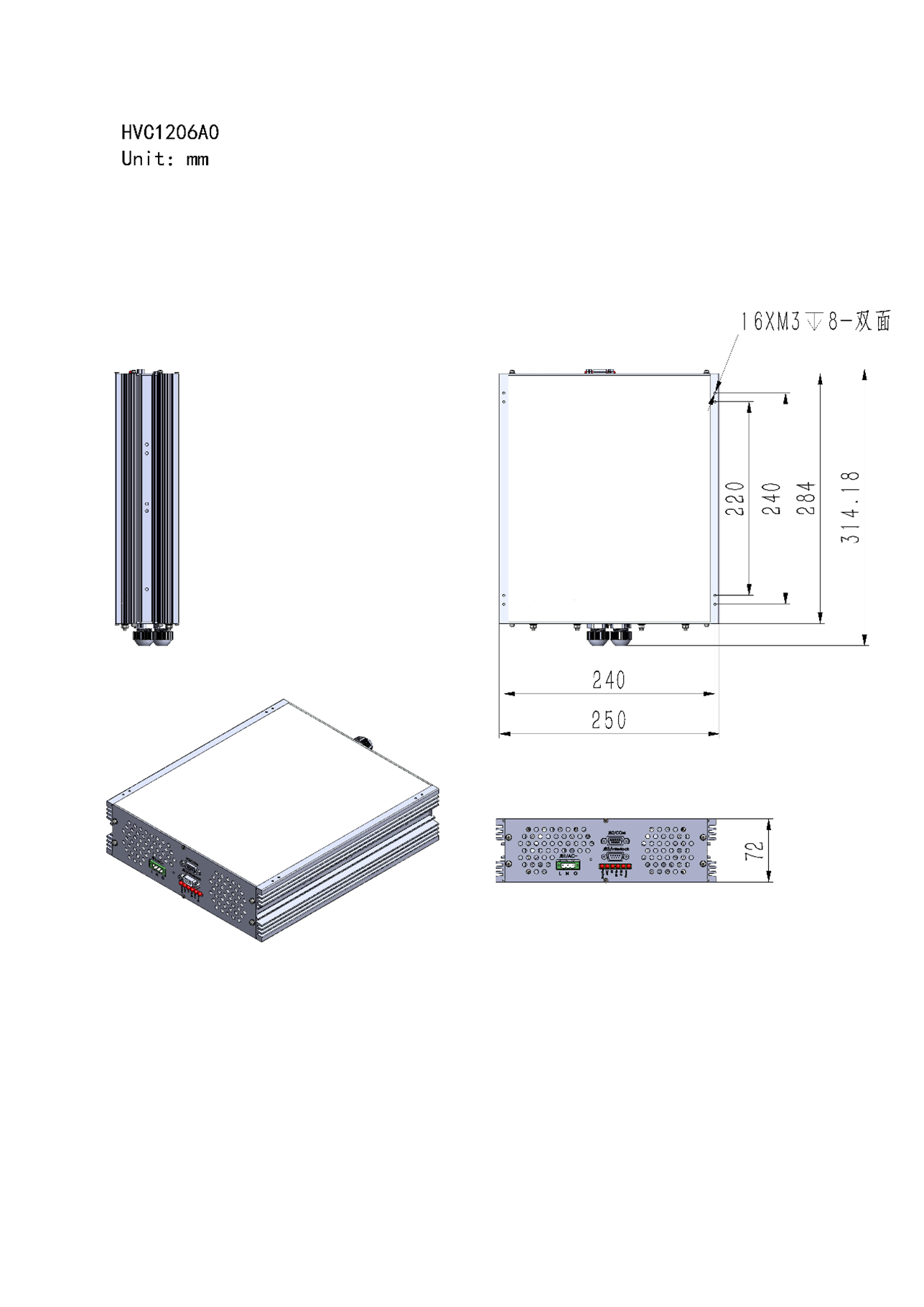

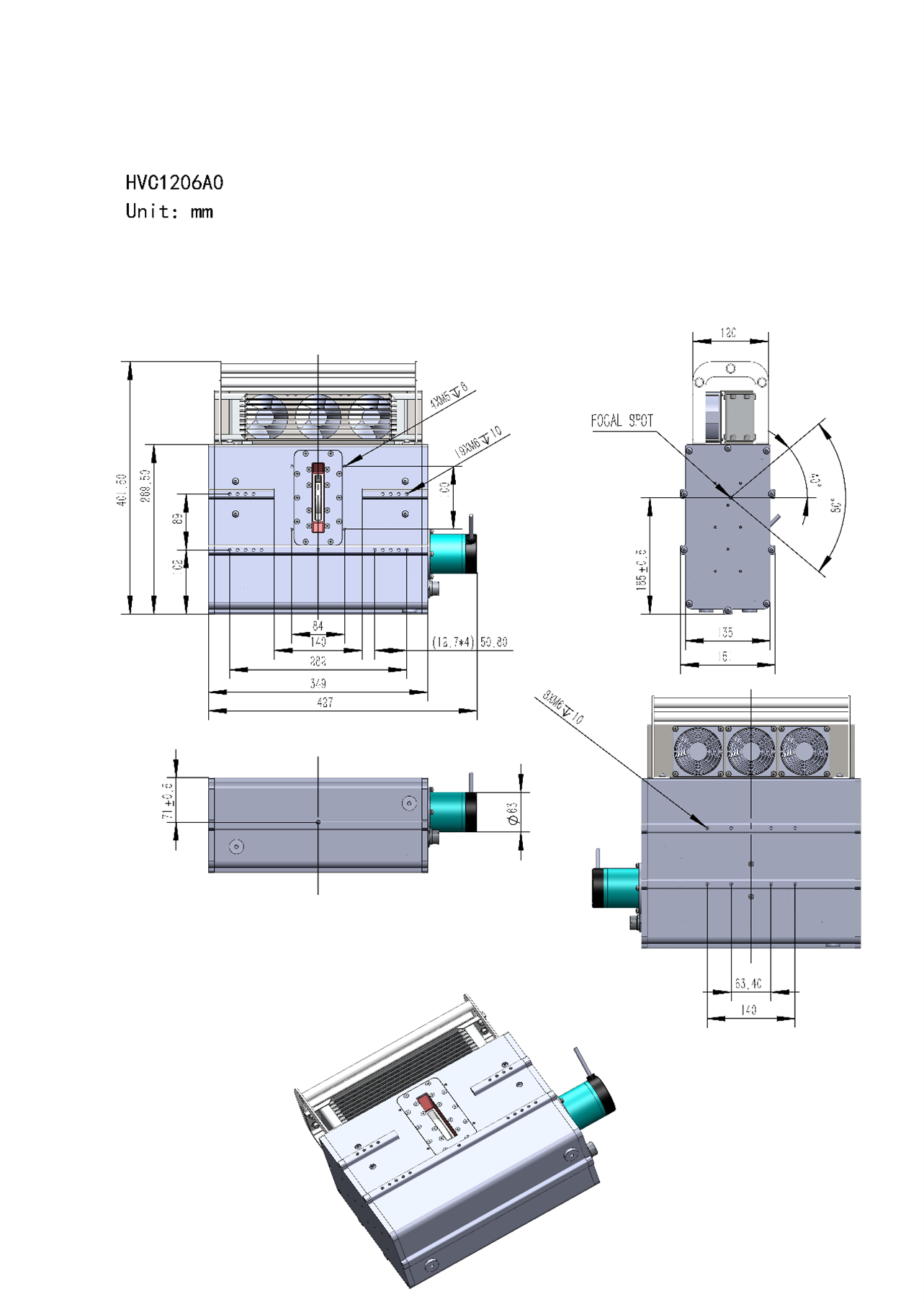

Tank size
