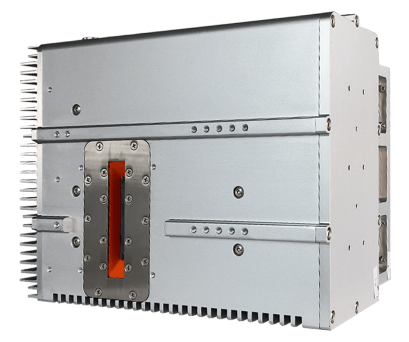

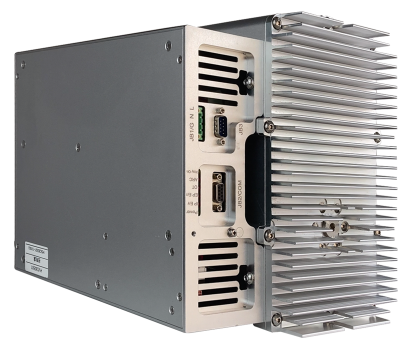

The HVC80502X X-ray source is an integrated X-ray generator with self-cooling and self-protecting features, with an output of up to 80kV/150W. It is characterized by its compact structure, portable installation, and reliable operation. Within the allowable working temperature range, it can operate continuously at 150W without additional cooling. The HVC80502X X-ray source consists of an X-ray chamber and a control box, and remote control, status monitoring, and firmware upgrades can be achieved via a standard RS232 interface.
Application:
Food testing, industrial non-destructive testing, dangerous goods testing and other fields, mostly used for simple X-ray machines or mobile X-ray testing equipment
Specification:
Item | Specification |
Input voltage | 230VAC±10%, 50/60Hz, 2Amps |
Output power of X ray tube | Max continuous output power 150W（30kV/5mA or 80kV/1.8mA ） |
Output voltage | Rated output voltage：Continuously adjustable voltage range 20kV—80kV |
Output voltage ripple：±0.5%（peak to peak） |
Output voltage accuracy：±1% of voltage setting value |
line regulation：±0.1% |
load regulation：±0.1% |
Tube current | Rated tube current：Continuously adjustable current range 0.2mA-5.0mA |
Tube current accuracy：±1% mA of current setting value |
line regulation：±0.5% |
load regulation：±0.5% |
Rise time of output voltage | The kV rise time is <0.4 Sec from 10% to 90% of the output voltage. |
Filament power supply: | input voltage：24VDC |
filament voltage：2.0 to 3.0Vac |
filament：3.0 to 3.5 Amps RMS |
preheating time：3sec |
Tube feature | Tube type：fixed anode、 glass envelope 、tungsten target |
focus：0.8mm |
inherent filtration：0.8mm Be，0.7mm AI |
radiation angle：80º*16º, fan beam |
target angle：25° |
Cooling | Transformer oil medium, natural heat dissipation |
Working temperatures | -10℃—40℃ |
Storing temperature | -20℃—60℃ |
System temperature protection | 60±3℃ of oil temperature |
Humidness | 98%，Non-condensation |
Weight | 23kg |
Installation direction | Installation in any direction |
Radiation angle | 16°×80° |
X-ray leakage | Less than 0.5mR/hr at 5cm from the surface of the HVC80502 Integrated X-Ray Source. |

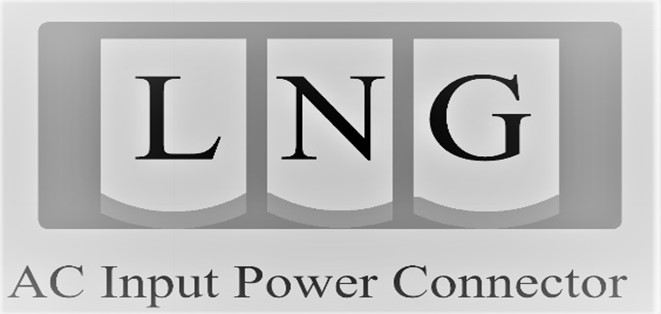

JB1/AC~(AC Input Power Connector)
Pin | Signal | Parameter |
1 | L | live wire |
2 | N | Neutral line |
3 | G | PE |

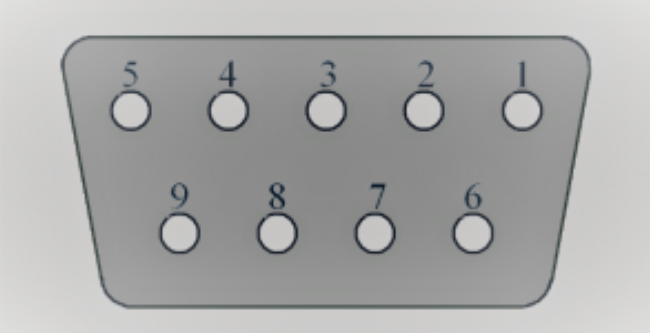

JB2/COM (DMR-9S interface definitions)
Pin | Signal | Parameter |
1.4.6.7.8.9 | N/C | No connect |
2 | TXD | Data transmit |
3 | RXD | Data receive |
5 | GND | Signal gnd |

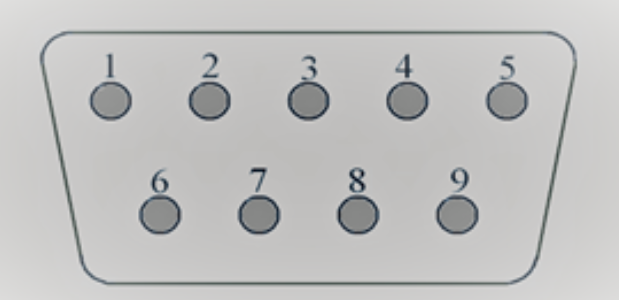

JB3/Interlock,(DMR-9P interface definitions)
Pin | Signal | Parameter |
3/4/5/6/7/8/9 | N/C | No connect |
1 | Interlock Out |
|
2 | Interlock In |
|

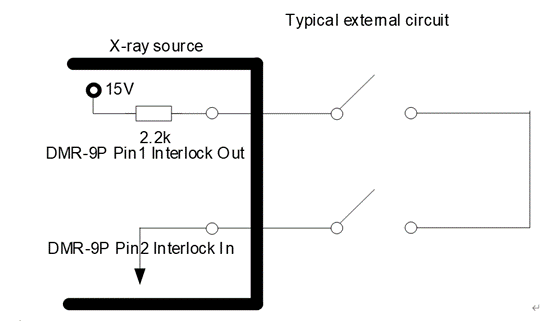

Short connect pin1 and pin2 make X ray source normal operation. Typical connection：
Led indicator:
ID | Color | Meaning |
XrayOn | Yellow | indicate X ray on |
ARC | Red | Arcing in oil tank |
OT | Red | Over temperature |
EP_Err | Red | Tube voltage error |
IP_Err | Red | Tube current error |
Power | Green | Power on |

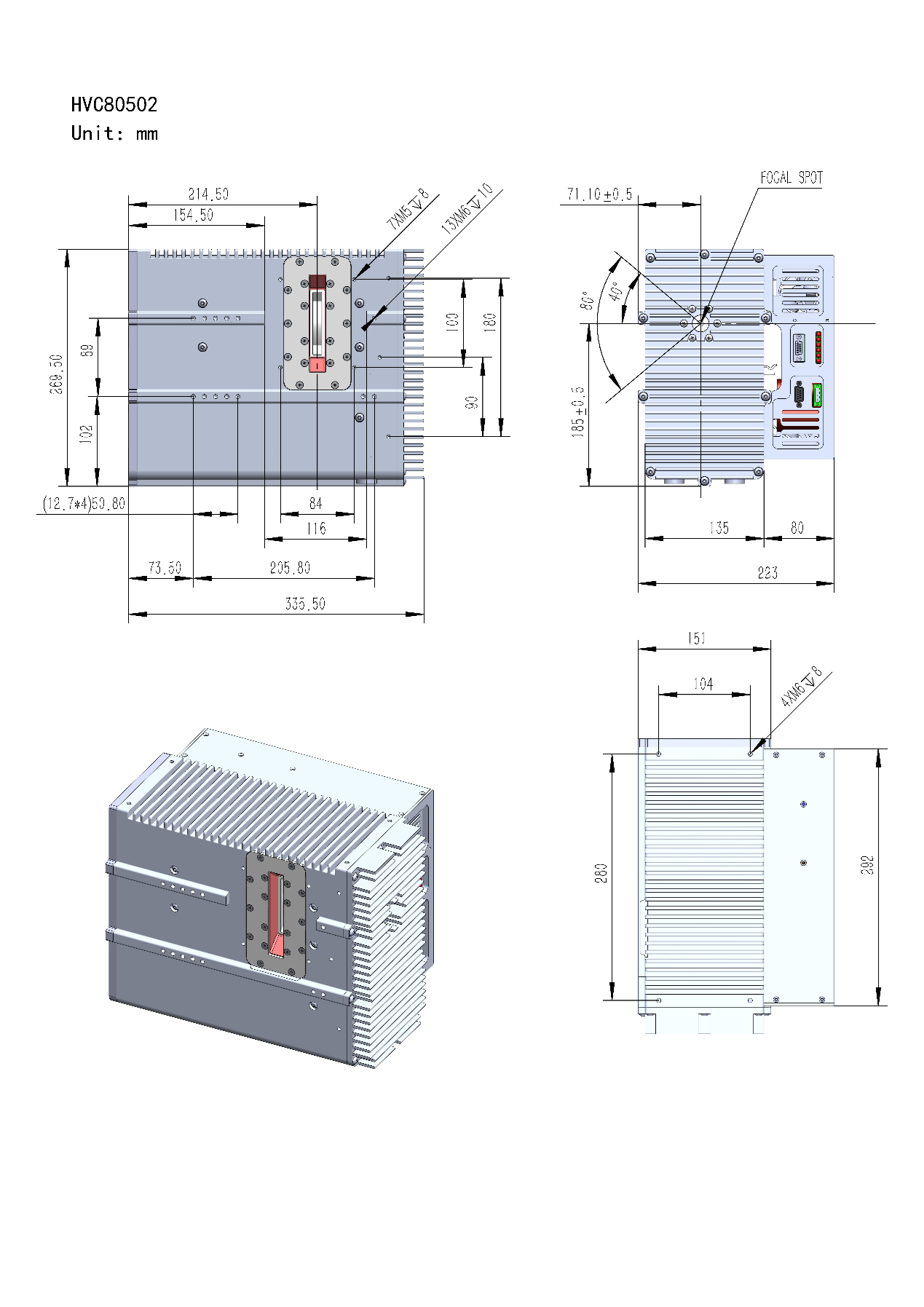

Tank size
