Product Details

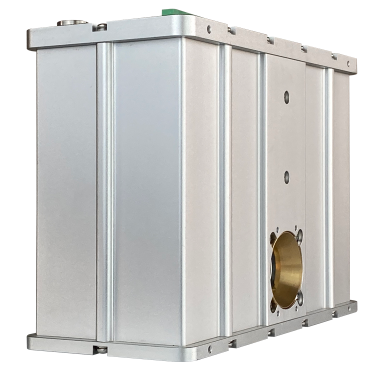

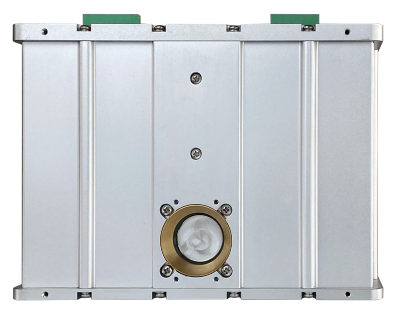

The HVP1003A0 is a compact, safe, low-leakage, and electrically stable integrated X-ray source. It can continuously operate at 100W for up to 300 seconds (or more than 100W for 200 seconds) within the specified temperature range. The X-ray source includes a high-voltage power supply, filament power supply, X-ray tube, high-voltage oil tank, and cooling system. This integrated X-ray source features high-frequency operation, self-cooling, and built-in protection. It supports a maximum voltage of 100kV and a maximum power of 300W. The system consists of a control box and an X-ray oil tank and is managed via RS232 interface for control, monitoring, and firmware updates.
Application:
Mainly used for bed bone density meter, bone density detection.
Specification:
Item | Specification |
Input voltage | 230VAC±10%, 50/60Hz, 3Amps |
Output power of X ray tube | Max continuous output power 300W（100kV/3mA） |
Output voltage | Rated output voltage：Continuously adjustable voltage range 30kV—80kV |
Output voltage ripple：±0.5%（peak to peak） |
Output voltage accuracy：±2% of voltage setting value |
line regulation：±0.1% |
load regulation：±0.1% |
Tube current | Rated tube current：Continuously adjustable current range 1.0mA-3.0mA |
Tube current accuracy：±0.2mA of current setting value |
line regulation：±0.1% |
load regulation：±0.1% |
Rise time of output voltage | The kV rise time is <0.6 Sec at maximum power |
The kV rise time is <0.1 Sec at low voltage ( < 40kV ) |
Filament power supply: | input voltage：24VDC |
filament voltage：2.0 to 5.3Vac |
filament：3.0 to 3.8 Amps RMS |
preheating time：3sec |
Tube feature | Tube type： Fixed anode, glass shell, tungsten target |
focus：0.5mm |
inherent filtration： 1.65mm AI |
target angle：20ºcone beam |
Cooling | Transformer oil medium, air cooling heat dissipation. |
Working temperatures | -10℃—40℃ |
Storing temperature | -20℃—60℃ |
System temperature protection | 60℃±3℃ of oil temperature |
Humidness | 98%，Non-condensation |
Weight | X-ray tank: 8.47kg |
Control box: 3.7kg |
Installation direction | Installation in any direction |
Radiation angle | cone angle of ray tapered beam 20° |
X-ray leakage | Less than 100mR/hr @1mm from the surface of the HVP1003A0. |

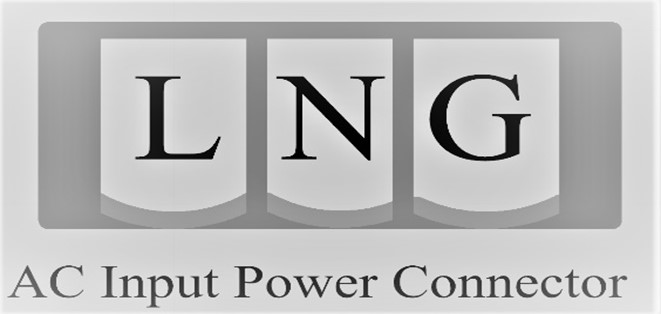

JB1/AC~(AC Input Power Connector)
Pin | Signal | Parameter |
1 | L | live wire |
2 | N | Neutral line |
3 | G | PE |

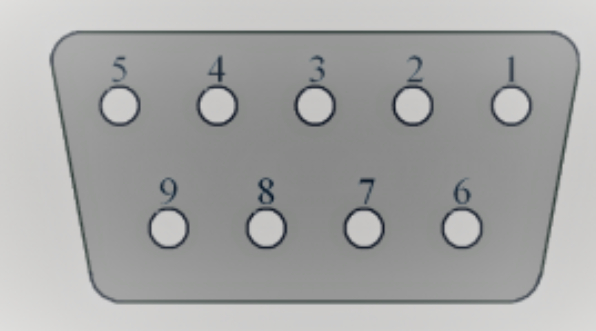

JB2/COM (DMR-9S interface definitions)
Pin | Signal | Parameter |
1.4.6.7.8.9 | N/C | No connect |
2 | TXD | Data transmit |
3 | RXD | Data receive |
5 | GND | Signal gnd |

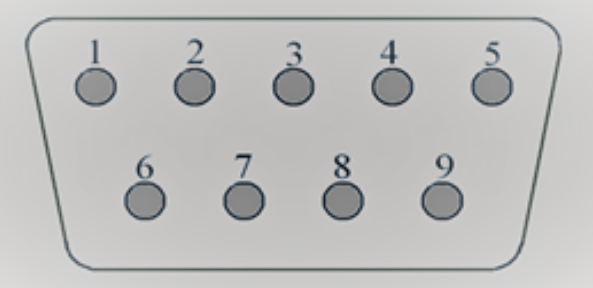

JB3/Interlock,(DMR-9P interface definitions)
Pin | Signal | Parameter |
3/4/5/6/7/8/9 | N/C | No connect |
1 | Interlock Out |
|
2 | Interlock In |
|

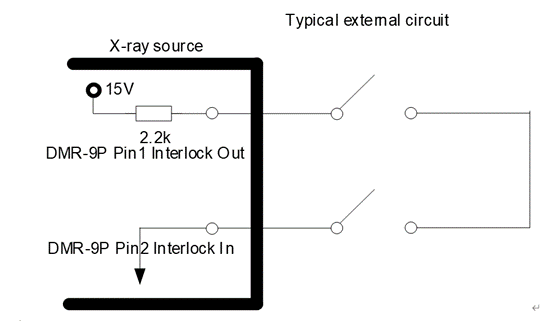

Short connect pin1 and pin2 make X ray source normal operation. Typical connection：
ID | Color | Meaning |
XrayOn | Yellow | indicate X ray on |
ARC | Red | Arcing in oil tank |
OT | Red | Over temperature |
EP_Err | Red | Tube voltage error |
IP_Err | Red | Tube current error |
Power | Green | Power on |

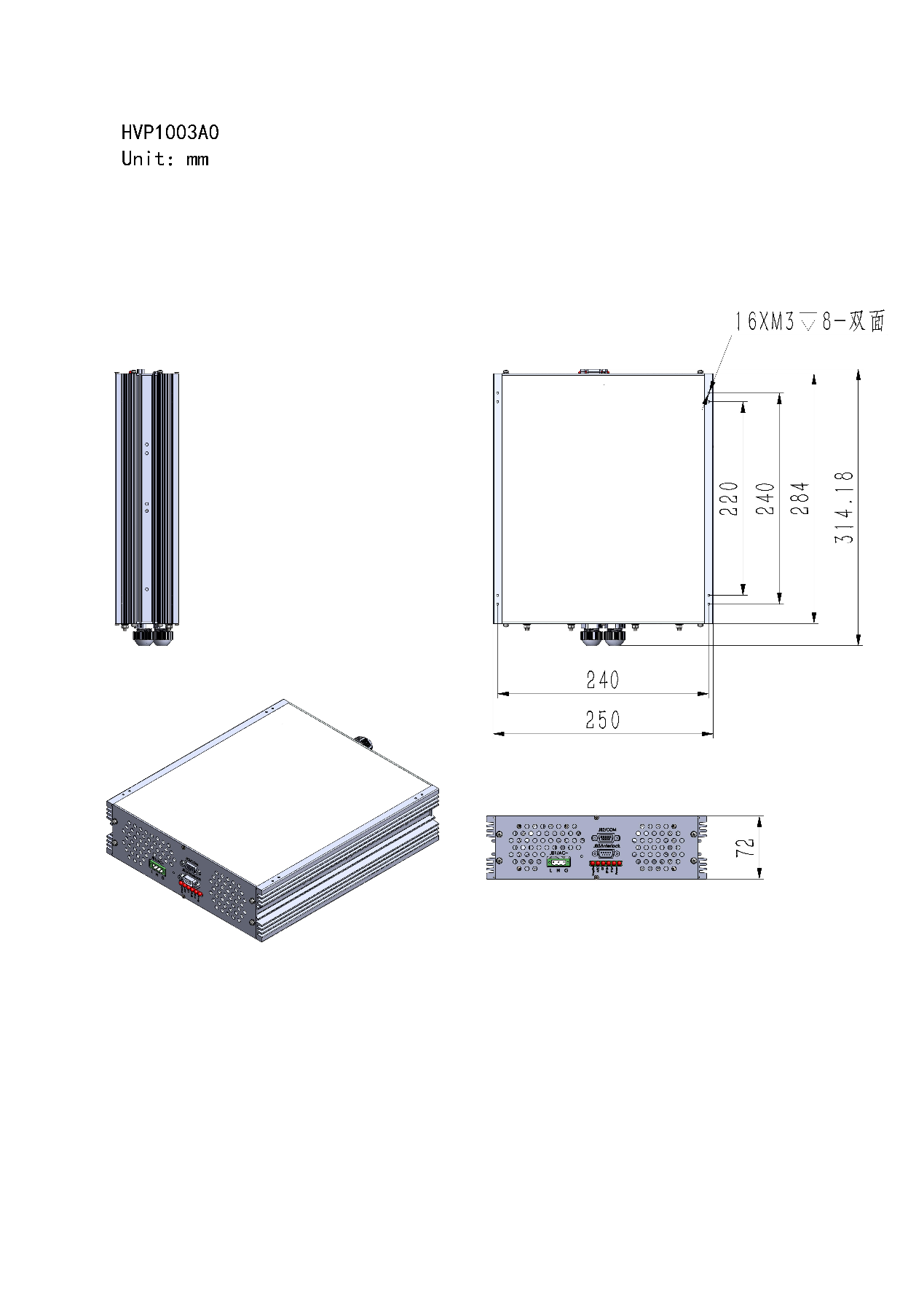

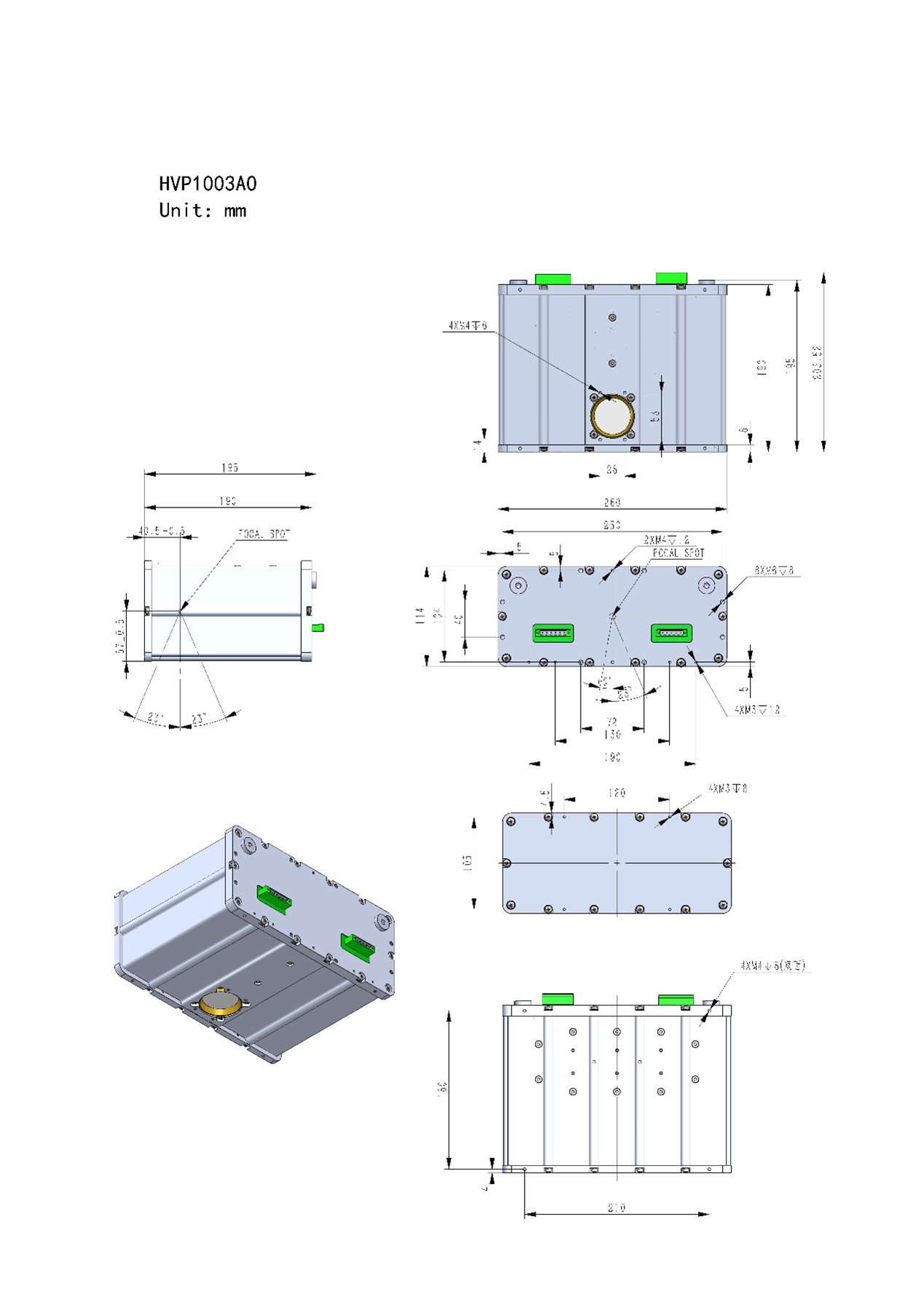

Tank size
