Product Details

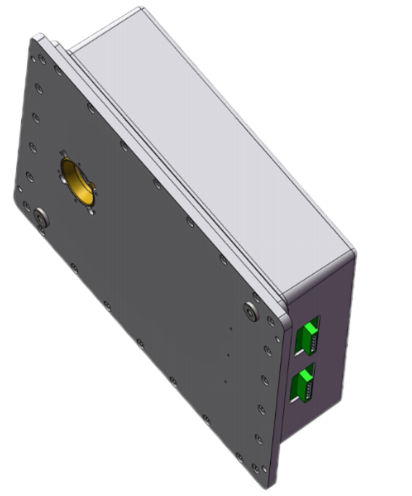

The HVP1102001 is a compact, portable, and reliable high-voltage X-ray generator designed for head imaging equipment. It can continuously operate at up to 1200W for 25 seconds within the specified temperature range, relying on self-cooling without the need for additional cooling. This X-ray source can output 110kV/1200W in continuous mode (1700W in pulse mode) and features high frequency, self-cooling, self-protection, and independent control. It consists of an X-ray high-voltage oil tank and a control box, with control, status monitoring, and programming managed through a DB9 interface. Additionally, the HVP1102001 supports both continuous and pulse operation modes.
Application:
Dental X-ray imaging equipment (CT and panoramic), head scan and mobile imaging equipment
Specification:
Item | Specification |
Input voltage | 230VAC±10%, 50/60Hz, 9.2A,PF>0.98. |
Output power of X ray tube | Maximum continuous output power 1200W up to 25s (100kV, 12mA) Maximum pulse output power 1700W up to 50s (100kV, 17mA) |
Output voltage | Rated output voltage：Continuously adjustable voltage range 50kV—110kV |
Output voltage ripple：±0.5%（peak to peak） |
Output voltage accuracy：±1% of voltage setting value |
line regulation：±0.1% |
load regulation：±0.1% |
Tube current | Rated tube current：Continuous mode: adjustable from 2 to 15mA (Max power 1200W); Pulse mode: adjustable from 2 to 20mA (maximum power 1700W). |
Tube current accuracy：±0.1mA of current setting value |
line regulation：±0.1mA |
load regulation：±0.1mA |
Filament power supply: | input voltage：24VDC |
filament voltage：4.0 to 8.0Vac |
filament：2.2 to 4.0 Amps RMS |
preheating time：3sec |
Tube feature | Tube type：fixed anode、glass envelope、tungsten target |
focus：0.5mm |
inherent filtration：1.5mm Al |
radiation angle： 30º, cone beam |
target angle：5° |
Operation mode | continuous mode, pulse mode |
Pulse frequency | 20-50Hz |
Pulse time | Single pulse exposure time：5.0～50ms |
Dual energy setting | Arbitrary setting of two different energy voltage levels of tube voltage within the rated range |
Max exposure time | Maximum continuous exposure time 25s at continuous mode |
Maximum continuous exposure time 50s at pulse mode |
Kv Rise Time at maximum power: | Continuous mode:To 100kV and 10mA in less than 15ms |
Pulse mode:rise time of single pulse kV less than 1ms |
Cooling | transformer oil，aluminum shell natural heat dissipation |
Working temperatures | -10℃—40℃ |
Storing temperature | -20℃—60℃ |
System temperature protection | 60±3℃ of oil temperature |
Humidness | 10%-95%，Non-condensation |
Weight | X-ray tank: 15.0kg |
Control box: 3.6kg |
Installation direction | Installation in any direction |
Radiation angle | cone angle of ray tapered beam 30° |
X-ray leakage | Less than 100mR/hr @1meter from the surface of the HVP1102001 Integrated X-Ray Source. |

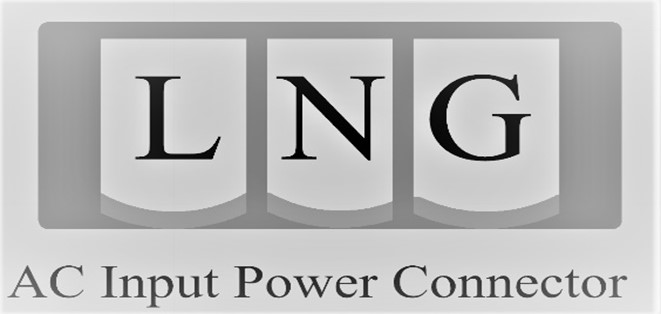

JB1/AC~(AC Input Power Connector)
Pin | Signal | Parameter |
1 | L | live wire |
2 | N | Neutral line |
3 | G | PE |

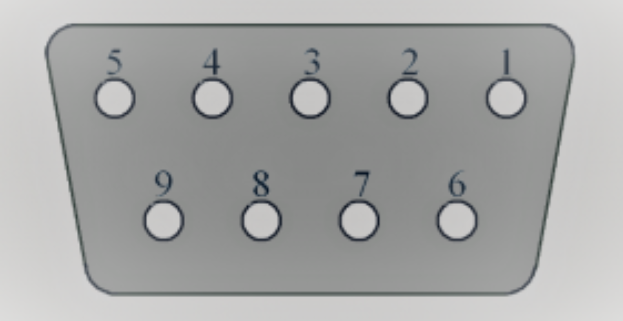

JB2/COM(Communication Interface, DMR-9S(female)
Pin | Signal | Parameter |
1.4.6.7.8.9 | N/C | Undefined |
2 | TXD | Data transmit |
3 | RXD | Data receive |
5 | GND | Reference ground |
JB3 (Signal Interface, DMR-9P(male)
Pin | Signal | Parameter |
1 | Interlock Out |
|
2 | Interlock In |
|
3 | Syn_ Out | synchronizing signal output |
4 | Syn_ In | synchronizing signal input |
5 | GND | Reference gnd |
6 | Syn_Out | synchronizing signal output |
7 | GND | Reference ground |
8 | N/C | Undefined |
9 | Xray_ON | X-ray switch signal pin. |

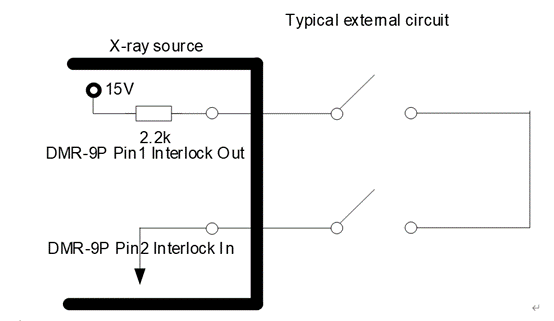

Short connect pin1 and pin2 make X ray source normal operation. Typical connection

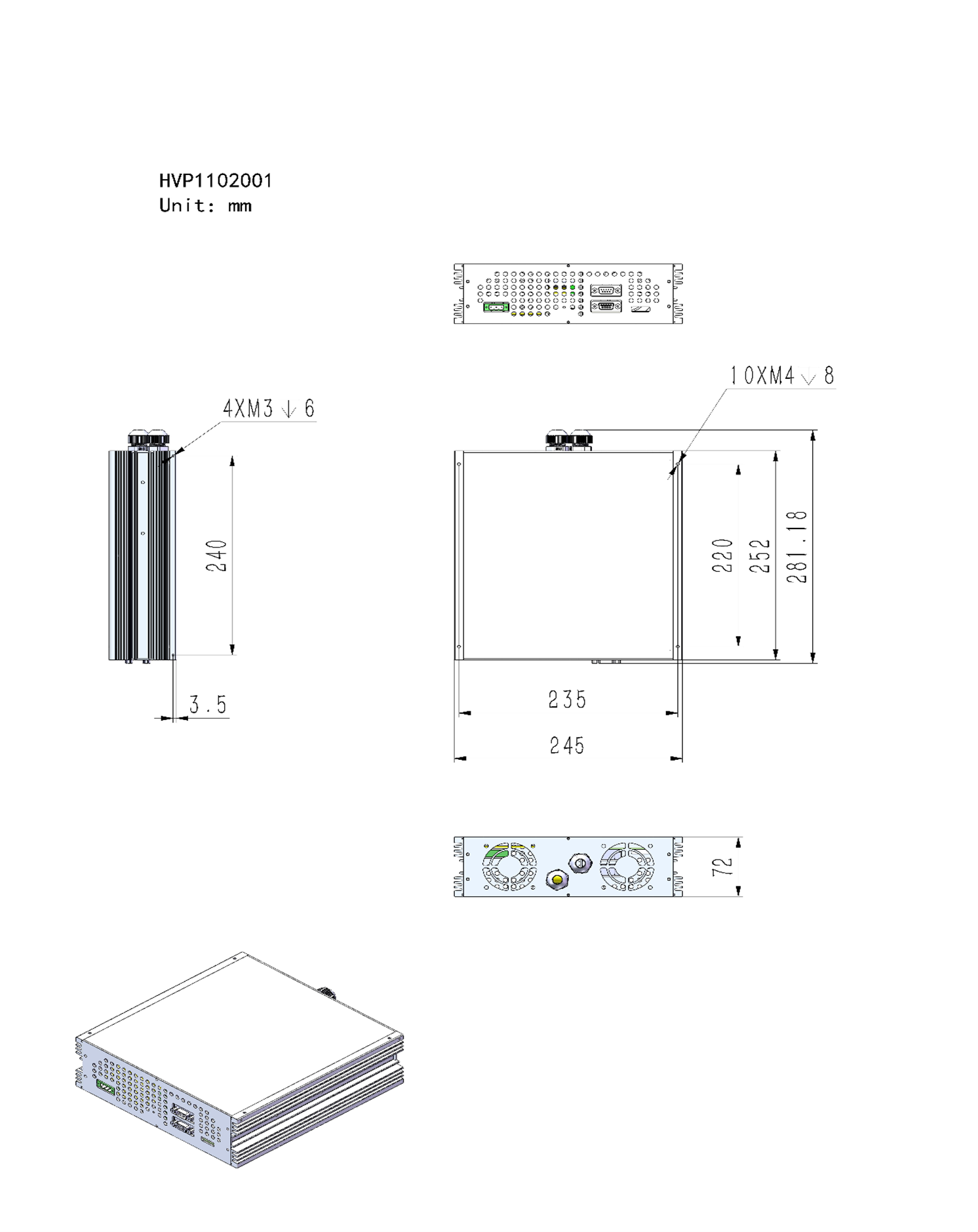

Tank size
